EI30 Encapsulated Transformator Transformer PCB Transformer  Product NameOKD-EI30 Encapsulated TransformerMain MaterialFerrite core, Copper wire, with enclosurePrimary230V/115V, 50/60HzPower0.5VA~2.8VACoil StructureToroidalPhaseSingle phaseCertificationISO9001:2008, CE, UL, RoHSNet Weight0.06kg~0.134kgPackageCarto

Featured Products

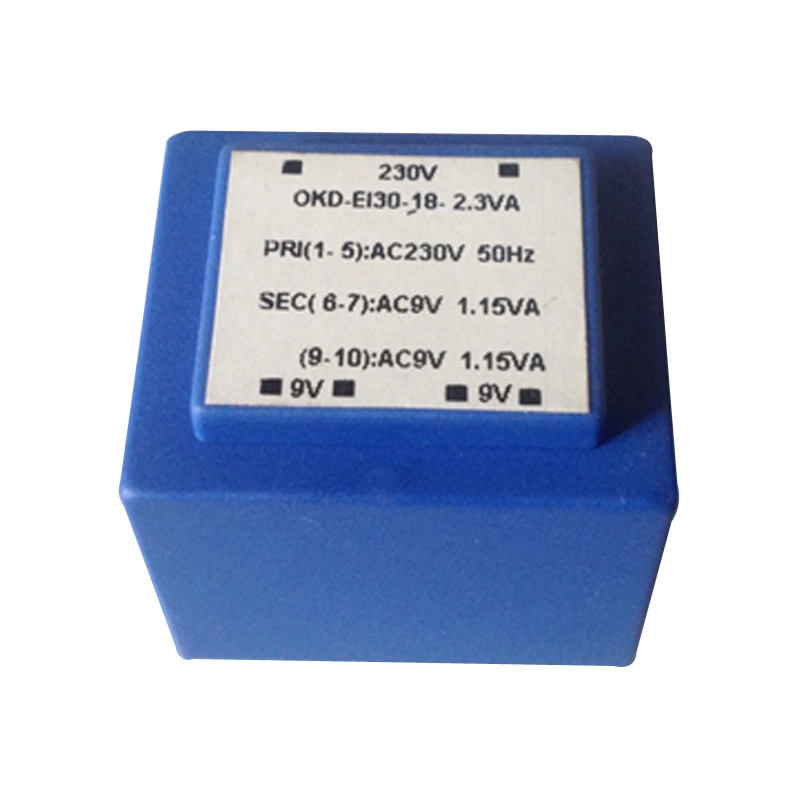

EI30 Encapsulated Transformator Transformer PCB Transformer

Product NameOKD-EI30 Encapsulated Transformer
Main MaterialFerrite core, Copper wire, with enclosure
Primary230V/115V, 50/60Hz
Power0.5VA~2.8VA
Coil StructureToroidal
PhaseSingle phase
CertificationISO9001:2008, CE, UL, RoHS
Net Weight0.06kg~0.134kg
PackageCartons/Wooden case/Pallet
ShippingDHL FedEx TNT UPS EMS
ApplicationSwitching power supplies, chargers, alarm systems, monitors, displays, audio equipments, inverters, communication systems, etc.
Features1. High efficiency & high quality
2. Low working temperature and long service life
3. Good insulation and high resistance to electric power
4. Anti-interference performance and high reliability
5. Low energy consumption and high dc superposition.

Ei30 Encapsulated Transformator Transformer PCB Transformer

OKD-EI30 0.5-2.8VA Encapsulated Transformer
Frequency 50/60Hz
Split-bobbin
Temperature class ta 70C /B
Weight: 0.06kg~0.134kg

Primary
(V)
Secondary
(V/mA)
No-Load
Voltage(V)
Part Number
2306/8310.40OKDEI30-0.5VA-01A
2309/5515.60OKDEI30-0.5VA-02A
23012/4220.80OKDEI30-0.5VA-03A
23015/3325.40OKDEI30-0.5VA-04A
23018/2829.50OKDEI30-0.5VA-05A
23024/2038.10OKDEI30-0.5VA-06A
2302× 6/422× 10.60OKDEI30-0.5VA-07A
2302× 9/282× 15.50OKDEI30-0.5VA-08A
2302× 12/202× 19.70OKDEI30-0.5VA-09A
2302× 15/162× 24.80OKDEI30-0.5VA-10A
2302× 18/132× 29.80OKDEI30-0.5VA-11A
2302× 24/102× 39.10OKDEI30-0.5VA-12A
1156/8310.40OKDEI30-0.5VA-13A
1159/5515.60OKDEI30-0.5VA-14A
11512/4220.80OKDEI30-0.5VA-15A
11515/3325.40OKDEI30-0.5VA-16A
11518/2829.50OKDEI30-0.5VA-17A
11524/2038.10OKDEI30-0.5VA-18A
1152× 6/422× 10.60OKDEI30-0.5VA-19A
1152× 9/282× 15.50OKDEI30-0.5VA-20A
1152× 12/202× 19.70OKDEI30-0.5VA-21A
1152× 15/162× 24.80OKDEI30-0.5VA-22A
1152× 18/132× 29.80OKDEI30-0.5VA-23A
1152× 24/102× 39.10OKDEI30-0.5VA-24A
2× 1156/8310.40OKDEI30-0.5VA-25A
2× 1159/5515.60OKDEI30-0.5VA-26A
2× 11512/4220.80OKDEI30-0.5VA-27A
2× 11515/3325.40OKDEI30-0.5VA-28A
2× 11518/2829.50OKDEI30-0.5VA-29A
2× 11524/2038.10OKDEI30-0.5VA-30A
2× 1152× 6/422× 10.60OKDEI30-0.5VA-31A
2× 1152× 9/282× 15.50OKDEI30-0.5VA-32A
2× 1152× 12/202× 19.70OKDEI30-0.5VA-33A
2× 1152× 15/162× 24.80OKDEI30-0.5VA-34A
2× 1152× 18/132× 29.80OKDEI30-0.5VA-35A
2× 1152× 24/102× 39.10OKDEI30-0.5VA-36A

Ei30 Encapsulated Transformator Transformer PCB TransformerEi30 Encapsulated Transformator Transformer PCB TransformerEi30 Encapsulated Transformator Transformer PCB TransformerEi30 Encapsulated Transformator Transformer PCB Transformer
Ei30 Encapsulated Transformator Transformer PCB Transformer
Ei30 Encapsulated Transformator Transformer PCB Transformer
Related products
Ei30 Encapsulated Transformator Transformer PCB Transformer

Ei30 Encapsulated Transformator Transformer PCB Transformer

Ei30 Encapsulated Transformator Transformer PCB Transformer

Packing&Shipping
Ei30 Encapsulated Transformator Transformer PCB Transformer
Ei30 Encapsulated Transformator Transformer PCB Transformer

Why Choose Us:
1. 20 years experience in transformer and inductor manufacturing;
2. Scientific management system, strong technical team, and strict quality control system;
3. RoHS,CE,TUV and UL certified;
4. OEM & ODM;
5. Competitive price,in time delivery and perfect after-service online.
