250kVA S11 -M series 10kv winding core type fully sealed oil-immersed transformer/distribution transformer

Product introduction:Load regulating power transformer is developed and produced according to the requirement of the market. Itcan be widely used in urban & rural, industrial & agricultural power network, which has a great significance forenergy-saving and environment protection. The lamination method of this product\'s

Featured Products

Product introduction:
Load regulating power transformer is developed and produced according to the requirement of the market. It
can be widely used in urban & rural, industrial & agricultural power network, which has a great significance for
energy-saving and environment protection. The lamination method of this product's iron core is ladder form,
instead of the traditional iron core lamination technology, which improves the magnetic circuit distribution inside
the iron core. It can be seen as a revolution of transformer iron core manufacturing. Compared with the
traditional, the no-load loss, no-load current and noise of the new one decrease 20% respectively, and load
loss decreases 10%. The new product applies CAD, with advance design, reasonable structure, and excellent
materials. Each index complies with the standards of GB1094-1996 "Power Transformer" GB/T6451-1999
"Technical Parameters and Requirements of Three-phase Oil-immersed Type Power Transformer". Now its level
is the leading position of our country.

Features:
High reliability, advanced level of performance, economic indicators and reasonable;
Using phase-shaped core of three joints, curing paint brushing the surface to reduce wear and tear and noise;
Winding structure of a new oil road design is reasonable, with the new insulation to improve the mechanical
strength and the ability to engage in short-circuit;
Tank forms, beautiful, generous.

Range of application:
It can be widely used in urban power network as well as petrochemical, metallurgical, textile and humid,
inaccessible enterprises, and mining.

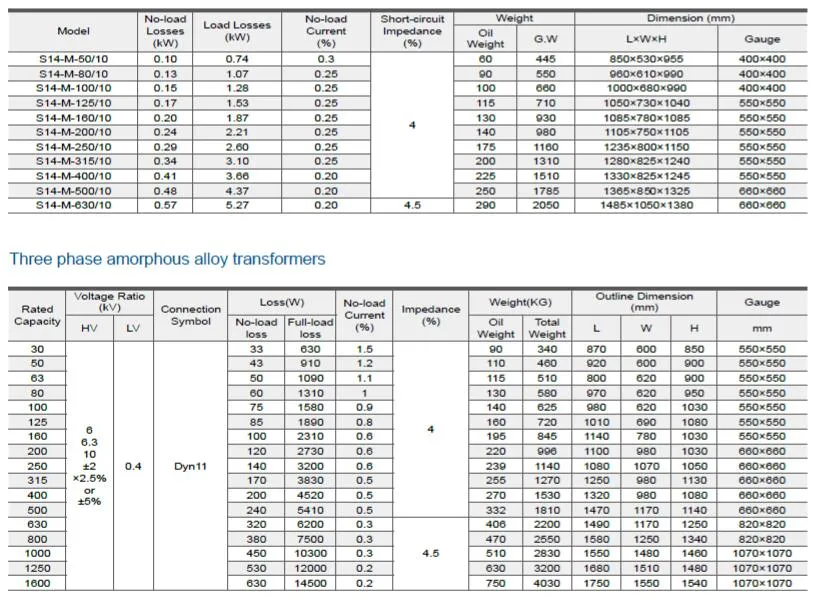

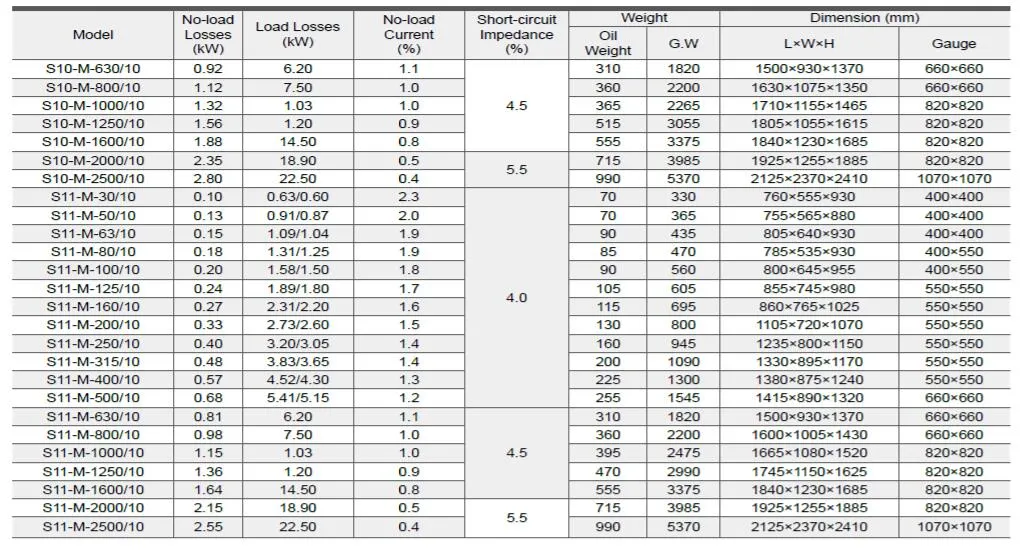

Technical parameters:
Model:S11-M-500/10
Rated Capacity (KVA):500
No-load Losses (KW):0.68
Load Losses (KW):5.41/5.15
No-load Current (%):1.2
Short-circuit Impedance (%):4.0
Weight (KG):Oil Weight:255    Gross Weight:1545
Dimension (mm):LxWxH=1415x890x1320
Gauge:660x660

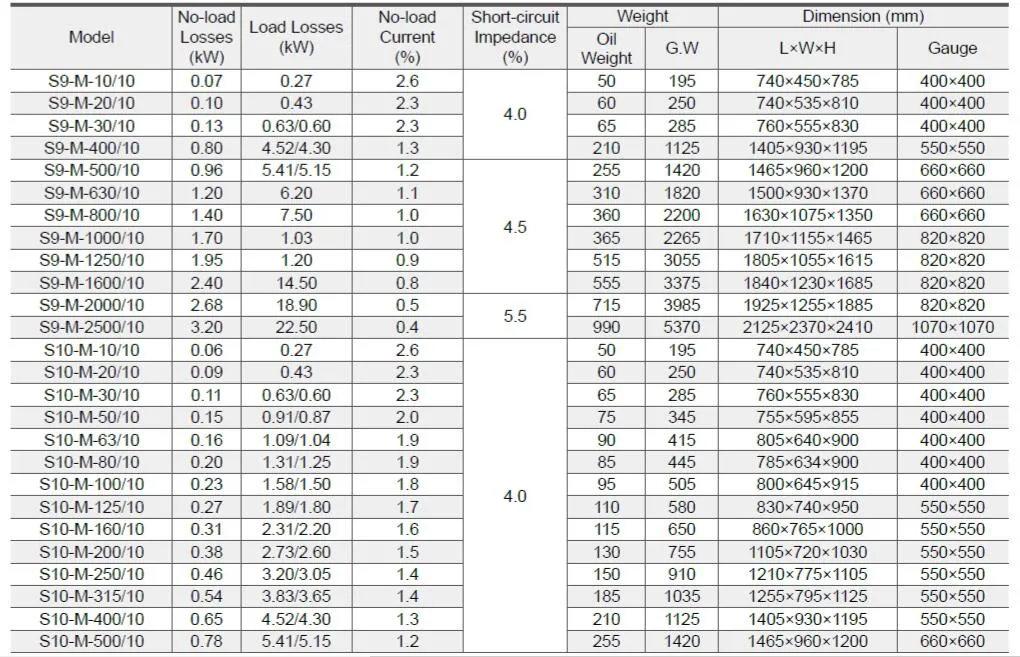

TYPECapacity KVALoad LossLoad Negative consu-mptionLoad
Current
Impedance voltageDimensionsWeight KG
ABCDEF
S9-M-30/10301306002.14.0770635100014400400310
S9-M-50/10501708702.04.01100660103014400450395
S9-M-63/106320010401.94.01130670110014400450450
S9-M-80/108021012501.84.01140675111014400450490
S9-M-100/1010029015001.64.01185690113014400450560
S9-M-125/1012534018001.54.01205710118019550550670
S9-M-160/1016040022001.44.01255720120019550550780
S9-M-200/1020048026001.34.01295740121519550550875
S9-M-250/1025056030501.24.013407551260195506501115
S9-M-315/1031567036501.14.014007701320195506501280
S9-M-400/1040080043001.04.015008601400196607501495
S9-M-500/1050096051501.04.015758951430196607501740
S9-M-630/10630120062000.94.516609301545196608502110
S9-M-800/10800140075000.84.5183010701590198208502625
S9-M-1000/1010001700103000.74.5193511751685198208502860
S9-M-1250/1012501950120000.64.5196011701730198208503330
S9-M-1600/1016002400145000.64.5205012201810198209003765
S9-M-2000/1020002520178200.54.5203012151940198209004530
S9-2500/1025002970230000.55.52280207024151982010707050

250kVA S11-M Series 10kv Wond Core Type Hermetically Sealed Oil Immersed Transformer/Distribution Transformer

250kVA S11-M Series 10kv Wond Core Type Hermetically Sealed Oil Immersed Transformer/Distribution Transformer

250kVA S11-M Series 10kv Wond Core Type Hermetically Sealed Oil Immersed Transformer/Distribution Transformer

250kVA S11-M Series 10kv Wond Core Type Hermetically Sealed Oil Immersed Transformer/Distribution Transformer

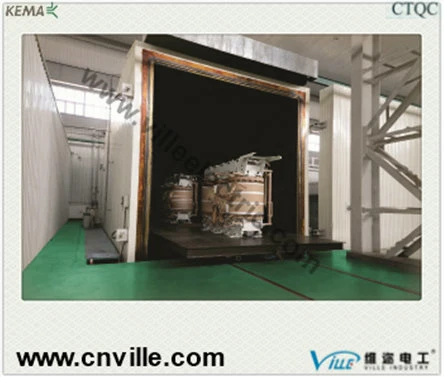

Work shop
250kVA S11-M Series 10kv Wond Core Type Hermetically Sealed Oil Immersed Transformer/Distribution Transformer250kVA S11-M Series 10kv Wond Core Type Hermetically Sealed Oil Immersed Transformer/Distribution Transformer


Our Performance:
1.Pre sale service
a.make technical solution
b.send quotation, technical data sheet and drawing
c.prepare power transmission plan, testing plan,and shipment plan
2.In sale service
a.supervise the manufacturing schedule totally in accordance with the plan
b.send photos to customer during every manufacturing process(hold point)
c.inform the customer one week before testinng.
3.After sale service
a.installation and commissioning, training the workers
b.quick response within 12 hours any time
c.provide 12 months gurantee period normally.

FAQ For You

1. Q:What is your delivery time ?
A: Depend on the type of transformer.
2. Q:What is your payment term?
A: 30% advance by T/T , 70% before delivery by T/T or L/C or we can discuss about it.
3. Q:What kind of starndard you follow?
A: IEC, ANSI, CSA, GB, etc
4. Q:What kind of supporting documentation you can provide normally
A: Quotation,outline drawing,manufacturing plan, quality control plan
testing plan, financial report, type test report(KEMA, CESI),reference list,etc
5. Q:What is your normal wanrranty period?
A: 12 months after transformer operation.
6. Q:Can u do installation and commissioningin user's site?
A: Yes, we can send our installation team to user's country for service.
7. Q:Do you have any experience in this kind of transformer?
A: Yes, we can provide reference list for check.
8. Q:Are you manufacturer or trading company?
A: Manufacturer and Trading company.

Our advantages:
Quality Assurance
--From the very beginning, VILLE ensures quality in every step to achieve the best quality.
 Experience Sharing
--With more than 30 years' experience in power industry, VILLE brings you an optimized solution.
 Global Service
--Wherever you are, VILLE global network will support and provide you with value.
 Quick Response
--In response to your needs without delay, VILLE  knows the value of your time.

Thanks for choosing VILLE as your reliable partner and
please trust both of us will create a brilliant future!
