[Three-phase transformer] Dry-type low-voltage isolating transformer Sg-25kVA for power distribution

PRODUCT INTRODUCTION:SG dry type low voltage isolation electrical transformers are special Products of WENLIDA, which are for the import and export products that satisfy all kinds of special voltage environment .They have the advantages for widely used loads and can bear the instant over load and even work continuously for a&nbs

Featured Products

PRODUCT INTRODUCTION:

SG dry type low voltage isolation electrical transformers are special Products of WENLIDA, which are for the import and export products that satisfy all kinds of special voltage environment .They have the advantages for widely used loads and can bear the instant over load and even work continuously for a long period.

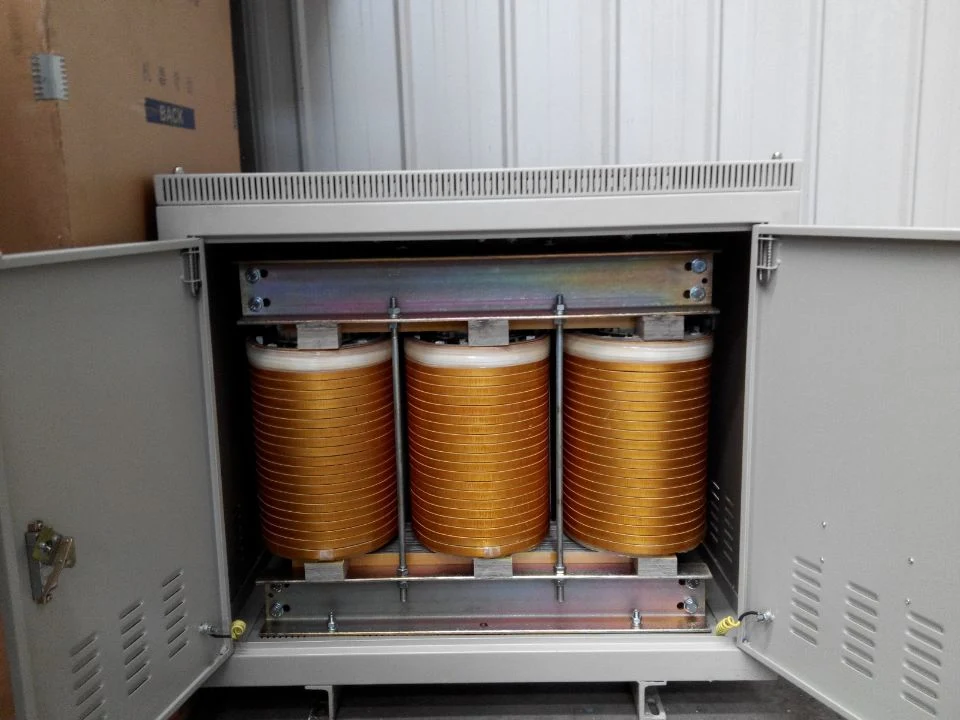

MORE PICTURES:

[Three-Phase Transformer]Dry Type Low-Voltage Isolation Electrical Transformer for Power Distribution Sg-25kVA

[Three-Phase Transformer]Dry Type Low-Voltage Isolation Electrical Transformer for Power Distribution Sg-25kVA
[Three-Phase Transformer]Dry Type Low-Voltage Isolation Electrical Transformer for Power Distribution Sg-25kVA
[Three-Phase Transformer]Dry Type Low-Voltage Isolation Electrical Transformer for Power Distribution Sg-25kVA


EXTERNAL DIMENSION AND WEIGHT:

NO.of phasesTypeCapacity(KVA)External dimension
Height*Width*Depth
Three-phaseSG-44450*320*500
SG-55
SG-66
SG-88530*350*580
SG-1010
SG-1212
SG-1515
SG-2020650*350*600
SG-2525
SG-3030750*400*700
SG-3535
SG-4040
SG-4545850*500*800
SG-5050
SG-6060
SG-7070
SG-8080
SG-90901000*500*1000
SG-100100
SG-110110
SG-1201201100*600*1100
SG-130130
SG-150150
SG-160160
SG-1801801200*600*1200
SG-200200
SG-2502501300*700*1300
SG-320320
SG-350350
SG-400400
SG-5005001500*800*1500
SG-600600
SG-8008001600*900*1600
Can be customized according to customer particular capacity

TYPE DESCRIPTION:
[Three-Phase Transformer]Dry Type Low-Voltage Isolation Electrical Transformer for Power Distribution Sg-25kVA
MAIN TECHNICAL SPECIFICATION:
Working Frequency50/60HZ
Current without load<4%
Withstand voltage strength2000V 1min without puncture
Test instrumentYZ1802 withstand voltage test instrument
Insulated gradeF(can design for your special requirement)
Insulated resistance≥2MΩ
Test instrumentZC25B-4 MΩ meter (1000V)
Connection modelY/Y0,△/Y0,auto-transformer(select one)
Coil allowable range of temperature80K (Real minus Environment)
Cooling modeNaturally cool

WORKING CONDITIONS:

○ Altitude no more than 1000m
○ Max.Temperature+45ºC
○ Max.Average temperature per day+35ºC
○ Max.Average temperature per year+25ºC
○ Min.Temperature-30ºC(applicable for out-door transformer)
○ Min.Temperature-5ºC(applicable for in-door transformer)
○ Relative humidity≤90%
○ Wave of power supply voltage approximately sino-wave
○ Multi-phase power supply should be approximately symmetric
